Tier 1 Course 5: Basic Extraction Control Theory

Expand upon the steam turbine speed controller and how CCC controls the extraction turbine. Explore how the two controllers work in combination to optimize speed and power along with the extraction flow or pressure. Learn how the control response is selected to best meet the control and limiting objectives. (course can take approximately 1 hour)

Course Topics

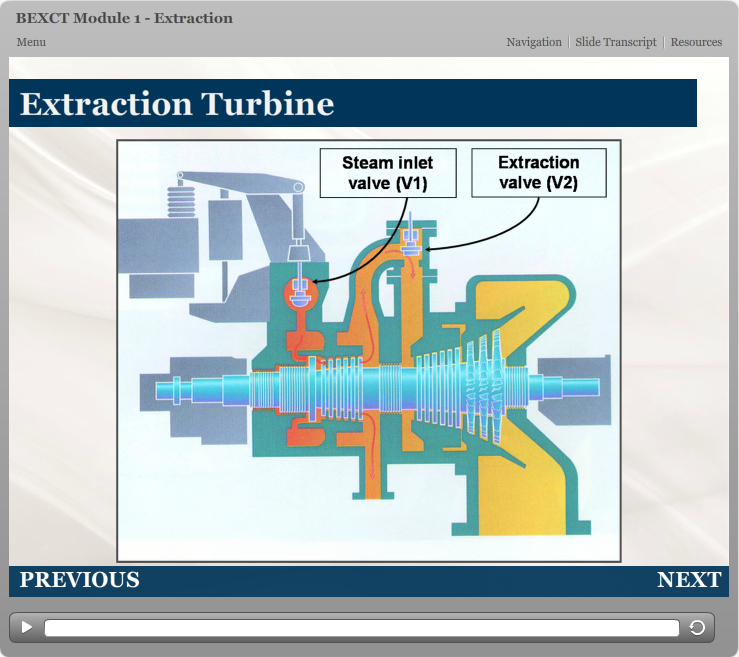

Extraction Turbines

View the basic components of an extraction turbine control system.

Learn the physical limitations of the extraction turbine
Understand extraction controller capabilities

Flow and Horsepower Relationships

Understand the relationship between flow and horsepower in an extraction turbine.

Extraction Turbine Maps

Understand the extraction map and speed/extraction turbine valve interaction.

What's Included

24/7 Access to the learning portal
Certificate of Completion
Expert CCC support available anytime

Prerequisites/Requirements

This Course: Tier 1, Course 5
Course Prequisites: Tier 1, Course 1: Compressor Maps and Surge and Tier 1, Course 4: Basic Steam Turbine Speed Control Theory
Designed for: Operators, Maintenance, and Engineers

Product Details

1 Month Access $149.00

Seats
